Yamaha YXZ 1000R Rear Diff Billet Pinion Carrier W/E-brake Delete

  • 20000
  • Save $ 149

Anyone who has ran their YXZ hard, has raced, or runs a turbo kit on their YXZ should know or will eventually know that the OEM YXZ rear differentials are a weak link.

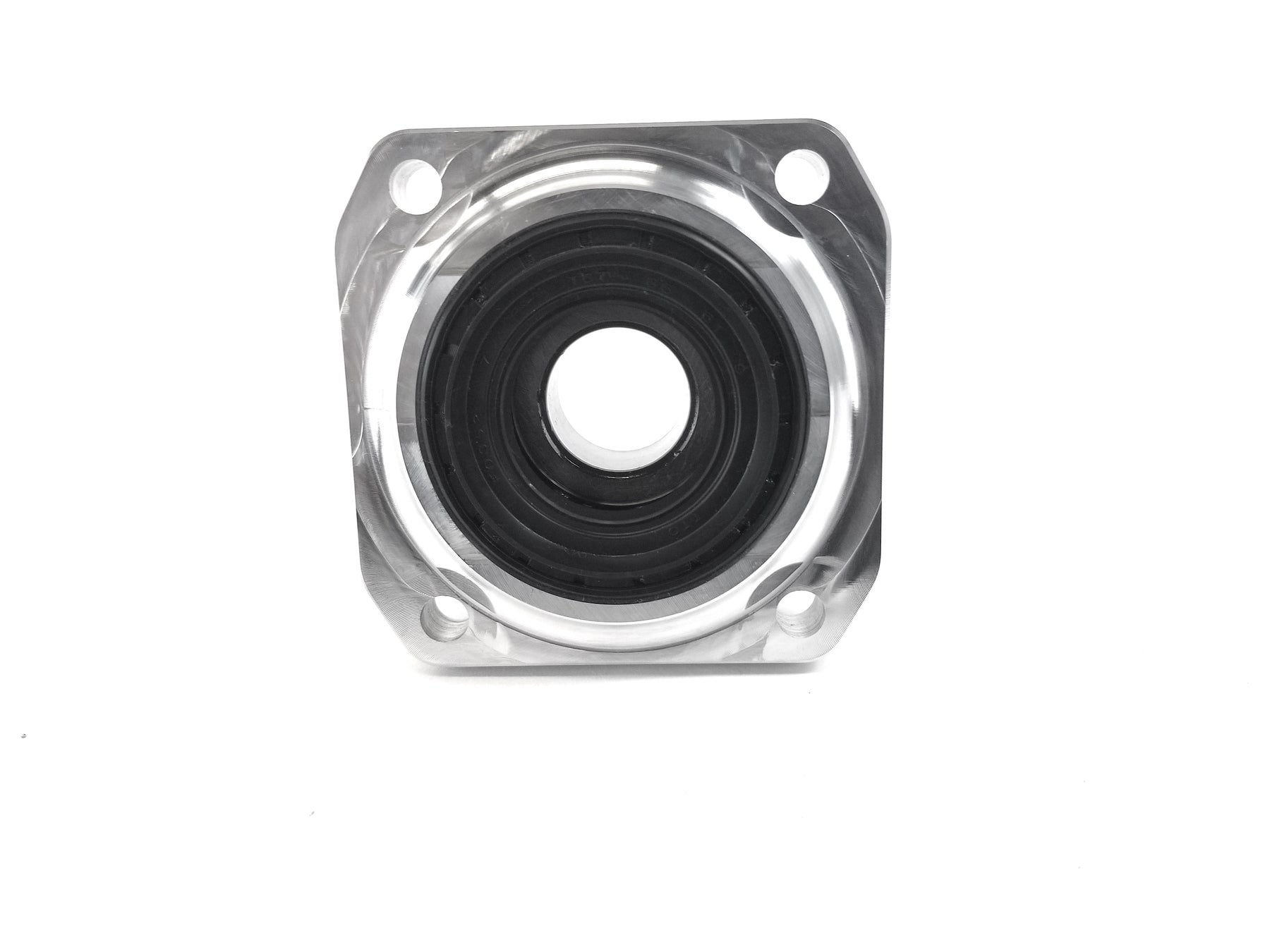

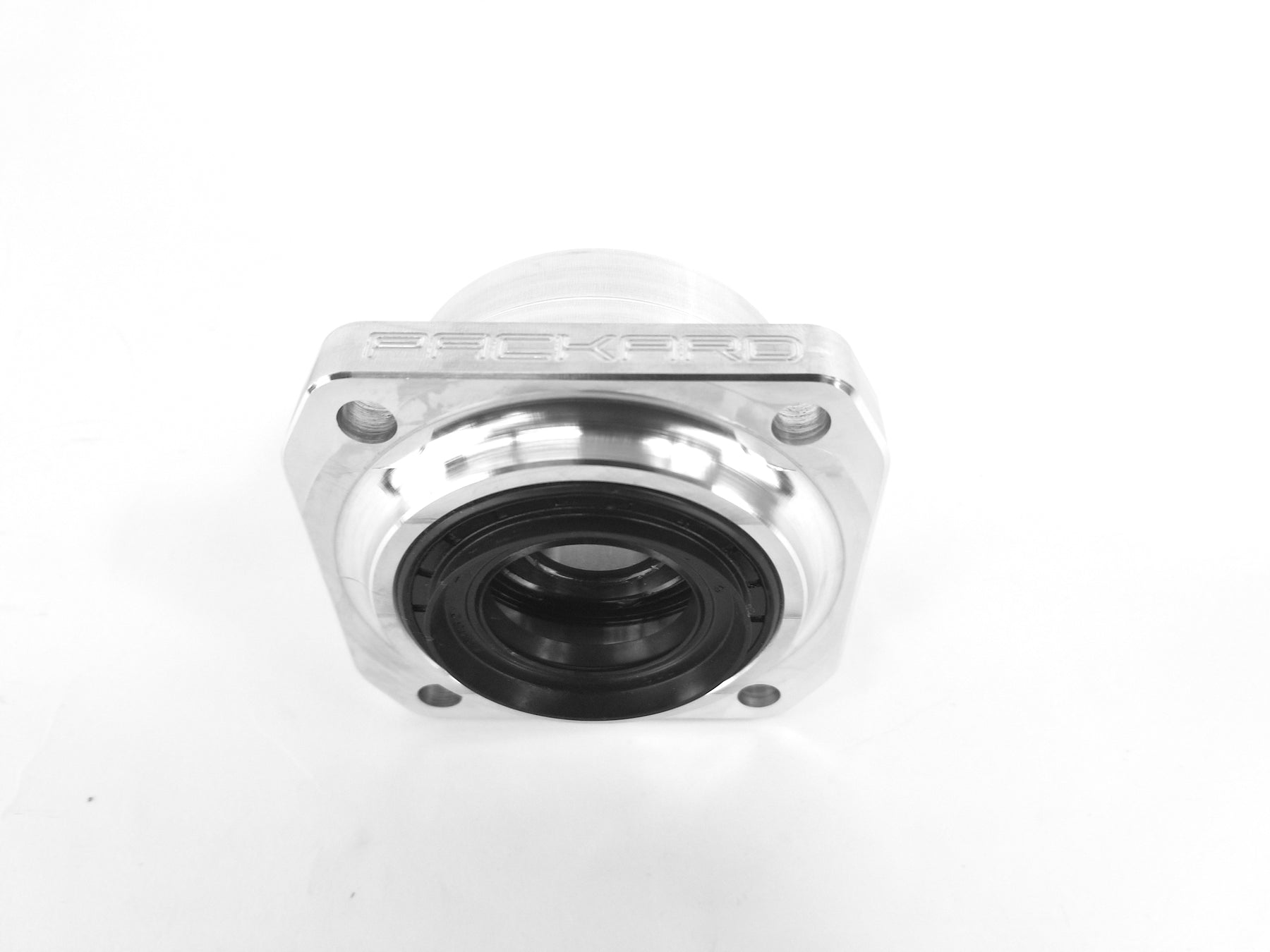

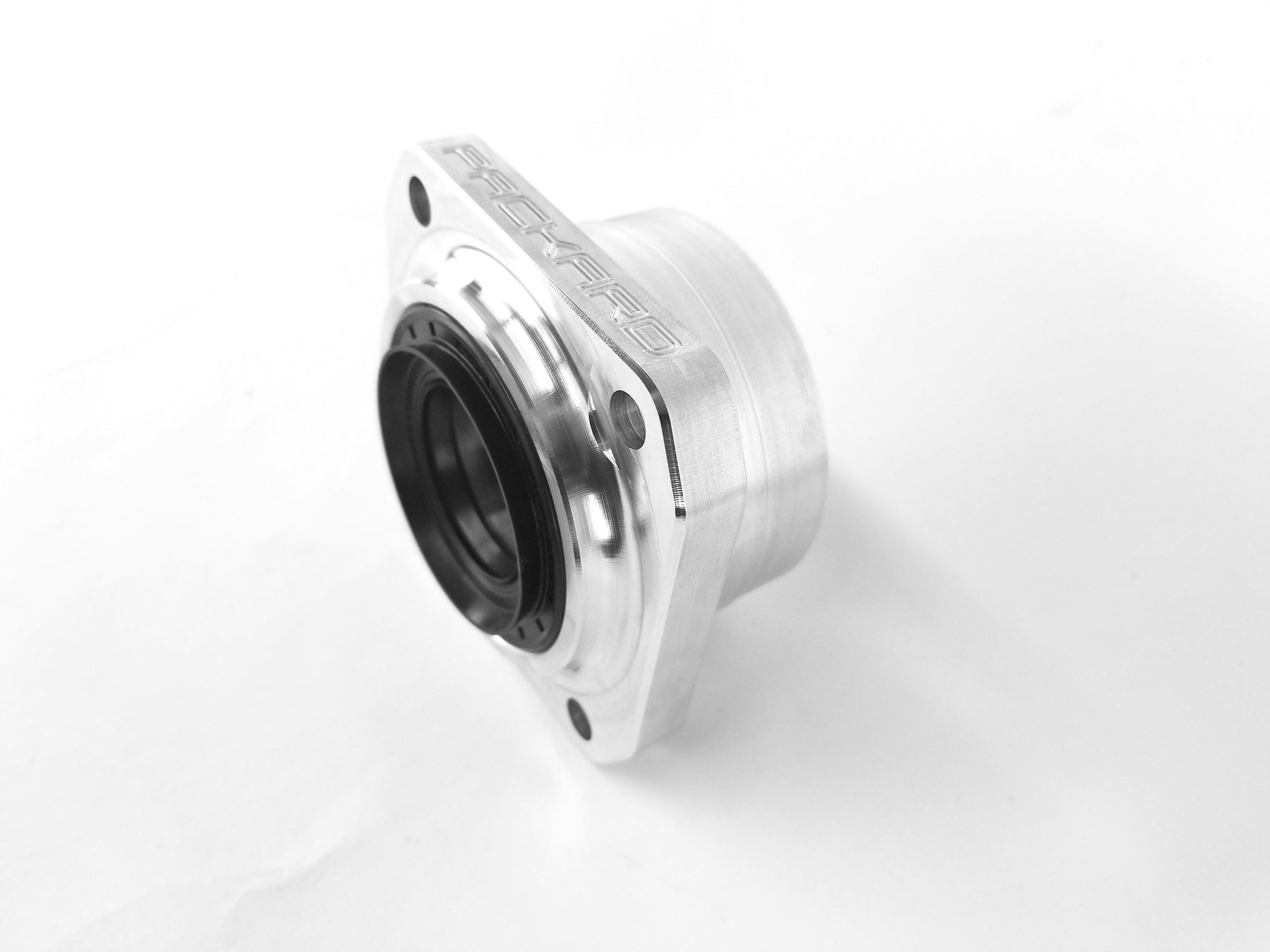

We have developed a Billet Pinion carrier that will greatly increase the life of your rear differential. It uses the same pinion bearing as we use in our full billet diff and has proven to take the abuse and punishment we want to dish out.


-It utilizes a completely new pinion bearing (pre installed in the billet carrier) that is 100% stronger with more then double the load capacity of the OEM bearing. We do not reuse the OEM pinion bearing as that bearing is another weak link on the OEM differential.

-Has a stronger and more rigid bearing carrier made out of billet aluminum (much stonger then the OEM cast aluminum carrier and eliminates the OEM o-ring grove which is prone to failure).

- E-brake Delete. This Pinion Carrier does not have a mount for the e-brake therefore you will not be able to use your e-brake with this carrier.


-CNC Billet aluminum pinion carrier with larger bearing installed

-OEM oil seal

-21 page instruction manual




-You can install it your self or we can install it for $79 if you pull out and send us your OEM diff as it is very important that it is installed properly along with the gear lash.
